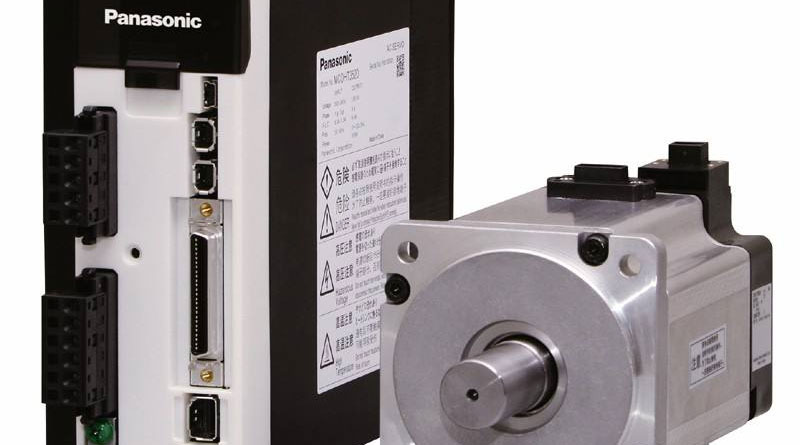

Panasonics MINAS A6B Series
Panasonic AC Servo Motors and Drives Servo Motor (เซอร์โวมอเตอร์) และ Servo Driver (เซอร์โว ไดร์เวอร์) MINAS A6B Series
High-Performance
- Frequency response: 3200 Hz
- Supports network communication EtherCAT
- Real-time auto tuning function, Anti-vibration filters are available
High functions
- Device Profile: CoE
- EtherCAT with many supported applications [7 control modes, 32 hm methods, DC(Synch), SM2(Synch), FreeRUN (Non-synch)]
- Cycle Time: 125us, 250us, 500us, 1ms, 2ms, 4ms
- System-up possible with various slaves
Standards
- Official EtherCAT Conformance Test model available
- IEC safety I/F model and linear motor model (A6BL, A6BM) are under development
Specifications
- Power supply : 100V/200V
- Motor lineup : low inertia, middle inertia, high inertia
- Output range : 50W – 5kW (over 7.5kW models are under development)
EtherCAT specification
- Device profile CoE（CANOpen over EtherCAT）
- Control mode csp, pp, hm, csv, cst, pv, tq
- hm method (homing mode) 1 to 14, 17 to 30, 33, 34, 35, 37
- Synchronized mode DC (Synch.), SM2 (Synch.), FreeRun (Non-synch.)
- Cycle time 125μs, 250μs, 500μs, 1ms, 2ms, 4ms
Panasonics Drives Servo Motor List
- MADLN01BE
- MADLT01BF
- MADLN05BE
- MADLT05BF
- MADLN11BE
- MADLT11BF
- MBDLN21BE
- MBDLT21BF
- MADLN15BE
- MADLT15BF
- MCDLN31BE
- MCDLT31BF
- MBDLN25BE
- MBDLT25BF
- MCDLN35BE
- MCDLT35BF
- MDDLN55BE
- MDDLT55BF
- MEDLN83BE
- MEDLT83BF
- MFDLNA3BE
- MFDLTA3BF
- MFDLNB3BE
- MFDLTB3BF
สอบถามข้อมูล Panasonics MINAS A6B Series เพิ่มเติมได้ที่: 084 654 7789
